Minio上传视频
上传视频
1. 分块测试
//分块测试
@Test
public void testChunk() throws IOException {
//源文件
File sourceFile = new File("D:\\c盘移动\\3月11日(1).mp4");
//分块文件的存储路径
String chunkFilePath = "D:\\c盘移动\\chunk\\";
//分块文件大小 1Mb
int chunkSize = 1024 * 1024 * 1;
//分块文件的个数 Math.ceil-->向上取整
int chunkNum = (int) Math.ceil(sourceFile.length() * 1.0 / chunkSize);
//使用流从源文件读数据,向分块文件写数据 (RandomAccessFile具有读写两个功能)
RandomAccessFile raf_r = new RandomAccessFile(sourceFile, "r");
//缓存区
byte[] bytes = new byte[1024];
for (int i = 0; i < chunkNum; i++) {
File chunkFile = new File(chunkFilePath + i);
//分块文件写入流
RandomAccessFile raf_rw = new RandomAccessFile(chunkFile, "rw");
int len = -1;
while ((len = raf_r.read(bytes)) != -1) {
raf_rw.write(bytes, 0, len);
if (chunkFile.length() >= chunkSize) {
break;
}
}
raf_rw.close();
}
raf_r.close();
}
2. 合并测试
//将分块进行合并
@Test
public void testMerge() throws IOException {
//源文件---用来校验md5值
File sourceFile = new File("D:\\c盘移动\\3月11日(1).mp4");
//块文件目录
File chunkFolder = new File("D:\\c盘移动\\chunk\\");
//合并后的文件
File mergeFile = new File("D:\\c盘移动\\merge.mp4");
//取出所有的文件（被分块的文件）
File[] files = chunkFolder.listFiles();
//将数组转成list
List<File> filesList = Arrays.asList(files);
//根据文件名升序排列
Collections.sort(filesList, new Comparator<File>() {
@Override
public int compare(File o1, File o2) {
return Integer.parseInt(o1.getName()) - Integer.parseInt(o2.getName());
}
});
//向合并文件写的流
RandomAccessFile raf_rw = new RandomAccessFile(mergeFile, "rw");
//缓存区
byte[] bytes = new byte[1024];
//遍历分块文件,向合并的文件写
for (File file : filesList) {
//读分块的流
RandomAccessFile raf_r = new RandomAccessFile(file, "r");
int len = -1;
while((len = raf_r.read(bytes))!= -1){
raf_rw.write(bytes,0,len);
}
raf_r.close();
}
raf_rw.close();
//合并文件完成后对合并文件检验
FileInputStream fileInputStream_merge = new FileInputStream(mergeFile);
FileInputStream fileInputStream_source = new FileInputStream(sourceFile);
String md5_merge = DigestUtils.md5Hex(fileInputStream_merge);
String md5_source = DigestUtils.md5Hex(fileInputStream_source);
if(md5_merge.equals(md5_source)){
System.out.println("文件合并成功");
}
}

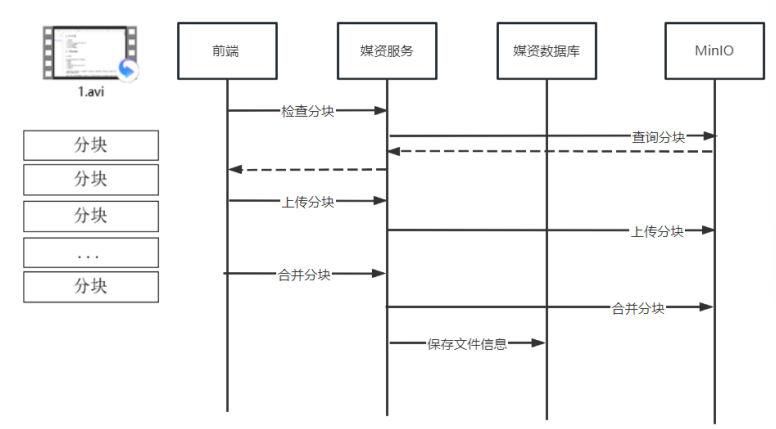

3. 视频上传流程
1、前端对文件进行分块。
2、前端上传分块文件前请求媒资服务检查文件是否存在，如果已经存在则不再上传。
3、如果分块文件不存在则前端开始上传
4、前端请求媒资服务上传分块。
5、媒资服务将分块上传至MinIO。
6、前端将分块上传完毕请求媒资服务合并分块。
7、媒资服务判断分块上传完成则请求MinIO合并文件。
8、合并完成校验合并后的文件是否完整，如果不完整则删除文件。
4. minio合并文件测试
/**
* 调用minio接口合并分块
*/
@Test
public void testMerge() throws Exception{
List<ComposeSource> sources = new ArrayList<>();
for (int i = 0; i < 4; i++) {
//指定分块文件的信息
ComposeSource composeSource = ComposeSource.builder().bucket("testbucket").object("chunk/" + i).build();
sources.add(composeSource);
}
//Stream流简化代码
//List<ComposeSource> sources = Stream.iterate(0, i -> ++i).limit(4).map(i -> ComposeSource.builder().bucket("testbucket").object("chunk/" + i).build()).collect(Collectors.toList());
//指定合并后的objectName等信息
ComposeObjectArgs objectArgs = ComposeObjectArgs.builder()
.sources(sources) //指定源文件--->需要(List<ComposeSource>)
.bucket("testbucket")
.object("merge01.mp4")
.build();
//合并文件
//minio默认的分块文件大小为5M
minioClient.composeObject(objectArgs); //--->需要(ComposeObjectArgs)
}
5. minio批量删除文件
/**
* 批量清理分块文件
*/
@Test
public void testDeleteChunk() throws Exception{
List<DeleteObject> deleteObjects = new ArrayList<>();
for (int i = 0; i < 4; i++) {
DeleteObject deleteObject = new DeleteObject("chunk/" + i);
deleteObjects.add(deleteObject);
}
//stream流简化
// List<DeleteObject> deleteObjects = Stream.iterate(0, i -> ++i)
// .limit(4)
// .map(i -> new DeleteObject("chunk/" .concat(Integer.toString(i))))
// .collect(Collectors.toList());
RemoveObjectsArgs removeObjectsArgs = RemoveObjectsArgs.builder()
.bucket("testbucket")
.objects(deleteObjects) //需要--->(Iterable<DeleteObject>)--->List继承Iterable
.build();
//------------------------------------removeObjects需要返回值,否则删除无效------------------------------------
Iterable<Result<DeleteError>> results = minioClient.removeObjects(removeObjectsArgs);//--->需要(RemoveObjectsArgs)
results.forEach(r->{
DeleteError deleteError = null;
try {
deleteError = r.get();
} catch (Exception e) {
e.printStackTrace();
}
});
}
6. RestResponse响应类
@Data
@ToString
public class RestResponse<T> {
/**
* 响应编码,0为正常,-1错误
*/
private int code;
/**
* 响应提示信息
*/
private String msg;
/**
* 响应内容
*/
private T result;
public RestResponse() {
this(0, "success");
}
public RestResponse(int code, String msg) {
this.code = code;
this.msg = msg;
}
/**
* 错误信息的封装
*
* @param msg
* @param <T>
* @return
*/
public static <T> RestResponse<T> validfail(String msg) {
RestResponse<T> response = new RestResponse<T>();
response.setCode(-1);
response.setMsg(msg);
return response;
}
public static <T> RestResponse<T> validfail(T result,String msg) {
RestResponse<T> response = new RestResponse<T>();
response.setCode(-1);
response.setResult(result);
response.setMsg(msg);
return response;
}
/**
* 添加正常响应数据（包含响应内容）
*
* @return RestResponse Rest服务封装相应数据
*/
public static <T> RestResponse<T> success(T result) {
RestResponse<T> response = new RestResponse<T>();
response.setResult(result);
return response;
}
public static <T> RestResponse<T> success(T result,String msg) {
RestResponse<T> response = new RestResponse<T>();
response.setResult(result);
response.setMsg(msg);
return response;
}
/**
* 添加正常响应数据（不包含响应内容）
*
* @return RestResponse Rest服务封装相应数据
*/
public static <T> RestResponse<T> success() {
return new RestResponse<T>();
}
public Boolean isSuccessful() {
return this.code == 0;
}
}
7. 定义接口层-Controller
/**
* @Author: ciky
* @Description: 上传视频
* @DateTime: 2024/6/5 12:39
**/
@Api(value = "大文件上传接口", tags = "大文件上传接口")
@RestController
public class BigFileController {
@ApiOperation("文件上传前检查文件")
@PostMapping("/upload/checkfile")
public RestResponse<Boolean> checkfile(
@RequestParam("fileMd5") String fileMd5
) throws Exception {
return null;
}
@ApiOperation("分块文件上传前的检测")
@PostMapping("/upload/checkchunk")
public RestResponse<Boolean> checkchunk(
@RequestParam("fileMd5") String fileMd5,
@RequestParam("chunk") int chunk
) throws Exception {
}
@ApiOperation("上传分块文件")
@PostMapping("/upload/uploadchunk")
public RestResponse<Boolean> uploadchunk(
@RequestParam("file") MultipartFile file,
@RequestParam("fileMd5") String fileMd5,
@RequestParam("chunk") int chunk
) throws Exception {
return null;
}
@ApiOperation("合并文件")
@PostMapping("/upload/mergechunks")
public RestResponse<Boolean> mergechunks(
@RequestParam("fileMd5") String fileMd5,
@RequestParam("fileName") String fileName,
@RequestParam("chunkTotal") int chunkTotal
) throws Exception{
}
}
8. 持久层-Mapper
9. 开发层-Service
(1) 检查文件是否存在
@Override
public RestResponse<Boolean> checkFile(String fileMd5) {
//先查询数据库
MediaFiles mediaFiles = mediaFilesMapper.selectById(fileMd5);
if (mediaFiles != null) {
//如果数据库存在,再查询minio
GetObjectArgs getObjectArgs = GetObjectArgs.builder()
.bucket(mediaFiles.getBucket()) //桶
.object(mediaFiles.getFilePath()) //objectName
.build();
//查询远程服务器获取到的一个流对象
try {
FilterInputStream inputStream = minioClient.getObject(getObjectArgs);
//文件已存在
if (inputStream != null) {
return RestResponse.success(true);
}
} catch (Exception e) {
e.printStackTrace();
}
}
//文件不存在
return RestResponse.success(false);
}
(2) 检查分片是否存在
@Override
public RestResponse<Boolean> checkChunk(String fileMd5, int chunk) {
//分块存储路径: md5前两位为两个目录,chunk存储分块文件
String chunkFileFolderPath = getChunkFileFolderPath(fileMd5);
GetObjectArgs getObjectArgs = GetObjectArgs.builder()
.bucket(bucket_video) //桶
.object(chunkFileFolderPath + chunk) //objectName:目录路径+文件名
.build();
//查询远程服务器获取到的一个流对象
try {
FilterInputStream inputStream = minioClient.getObject(getObjectArgs);
//文件已存在
if (inputStream != null) {
return RestResponse.success(true);
}
} catch (Exception e) {
e.printStackTrace();
}
//文件不存在
return RestResponse.success(false);
}
private String getChunkFileFolderPath(String fileMd5) {
return fileMd5.substring(0, 1) + "/" + fileMd5.substring(1, 2) + "/" + fileMd5 + "/chunk/";
}
(3) 上传分块
-
Minio合并分块要求大于5Mb,
-
springboot web默认上传文件大小限制为1Mb
-
nacos中media-api工程修改配置文件
spring: servlet: multipart: max-file-size: 50MB #单个文件的大小限制 max-request-size: 50MB #单个请求的大小限制
@Override
public RestResponse<Boolean> uploadChunk(String fileMd5, int chunk, String localChunkFilePath) {
//获取mimeType
String mimeType = getMimeType(null); //------------------------抽取方法1
//分块文件的路径
String chunkFilePath = getChunkFileFolderPath(fileMd5)+chunk; //------------------------抽取方法2
//将文件上传到minio
boolean b = addMediaFilesToMinIO(bucket_video, localChunkFilePath, mimeType, chunkFilePath);//------------------------抽取方法3
if(!b){
return RestResponse.validfail(false,"上传分块文件失败");
}
return RestResponse.success(true);
}
/**
* 根据扩展名获取mimeType ------------------------抽取方法1
*/
private String getMimeType(String extension) {
if (extension == null) {
extension = "";
}
//根据扩展名获取mimeType
ContentInfo extensionMatch = ContentInfoUtil.findExtensionMatch(extension);
String mimeType = MediaType.APPLICATION_STREAM_JSON_VALUE; //通用mimeType(字节流)
if (extensionMatch != null) {
mimeType = extensionMatch.getMimeType();
}
return mimeType;
}
/**
* 得到分块文件的目录 ------------------------抽取方法2
*/
private String getChunkFileFolderPath(String fileMd5) {
return fileMd5.substring(0, 1) + "/" + fileMd5.substring(1, 2) + "/" + fileMd5 + "/chunk/";
}
/**
* 上传文件到minio ------------------------抽取方法3
*
* @param bucket 桶
* @param localFilePath 本地文件路径
* @param mimeType 媒资类型
* @param objectName 对象名
* @return
*/
public boolean addMediaFilesToMinIO(String bucket, String localFilePath, String mimeType, String objectName) {
try {
minioClient.uploadObject(UploadObjectArgs.builder()
.bucket(bucket) //minio中的桶
.filename(localFilePath) //本地文件路径
.object(objectName) //对象名,minio桶中的路径
.contentType(mimeType) //媒体文件类型
.build());
return true;
} catch (Exception e) {
e.printStackTrace();
log.error("上传文件出错,bucket{},objectName{},错误信息{}", bucket, objectName, e.getMessage());
}
return false;
}
(4) 合并分块
@Override
public RestResponse<Boolean> mergeChunks(Long companyId, String fileMd5, int chunkTotal, UploadFileParamsDto uploadFileParamsDto) {
//分块文件的路径
String chunkFileFolderPath = getChunkFileFolderPath(fileMd5); //----------------------调用方法1
//找到所有的分块文件
List<ComposeSource> sources = Stream.iterate(0, i -> ++i).limit(chunkTotal).map(i -> ComposeSource.builder().bucket(bucket_video).object(chunkFileFolderPath + i).build()).collect(Collectors.toList());
//源文件名称
String filename = uploadFileParamsDto.getFilename();
//合并后文件的objectName
String objectName = getFilePathByMd5(fileMd5, filename.substring(filename.lastIndexOf("."))); //----------------------调用方法2
//指定合并后的objectName等信息
ComposeObjectArgs objectArgs = ComposeObjectArgs.builder()
.sources(sources) //指定源文件--->需要(List<ComposeSource>)
.bucket(bucket_video)
.object(objectName)
.build();
//1.==================调用minio的sdk进行文件合并==================
//minio默认的分块文件大小为5M
try {
minioClient.composeObject(objectArgs); //--->需要(ComposeObjectArgs)
} catch (Exception e) {
e.printStackTrace();
log.error("合并文件出错,bucket:{},objectName:{},错误信息:{}", bucket_video, objectName, e.getMessage());
return RestResponse.validfail(false, "合并文件出错");
}
//minio直接获取文件md5 ---> getObject方法获取输入流,对流进行md5值的获取
try {
//获取minio远程服务器对象流
InputStream minioInputStream = minioClient.getObject(GetObjectArgs.builder()
.bucket(bucket_video)
.object(objectName)
.build());
//通过对象流获取md5值
String mergeMd5 = DigestUtils.md5Hex(minioInputStream);
//比较原始的md5值和合并后的md5值
if (!fileMd5.equals(mergeMd5)) {
log.error("校验合并文件的md5值不一致,原始文件{},合并文件{}", fileMd5, mergeMd5);
return RestResponse.validfail(false, "文件校验失败");
}
//文件大小(通过minio获取)
long fileSize = getFileSizeFromMinIO(bucket_video, objectName); //----------------------调用方法3
uploadFileParamsDto.setFileSize(fileSize);
} catch (Exception e) {
e.printStackTrace();
return RestResponse.validfail(false, "文件校验失败");
}
//2.==================将文件信息入库==================
//addMediaFilesToDb添加了@Transaction注解
//通过代理对象调用,启用事务功能 //----------------------调用方法4
MediaFiles mediaFiles = currentProxy.addMediaFilesToDb(companyId, fileMd5, uploadFileParamsDto, bucket_video, objectName);
if (mediaFiles == null) {
return RestResponse.validfail(false, "文件入库失败");
}
//3.==================清理分块文件==================
clearChunkFiles(chunkFileFolderPath, chunkTotal); //----------------------调用方法5
return RestResponse.success(true);
}
/**
* 得到分块文件的目录 //----------------------方法1
* 0/1/0158406d1d5f63c71e7b99f981f63ef7/
*/
private String getChunkFileFolderPath(String fileMd5) {
return fileMd5.substring(0, 1) + "/" + fileMd5.substring(1, 2) + "/" + fileMd5 + "/chunk/";
}
/**
* 根据md5值得到文件的地址 //----------------------方法2
* 0/1/0158406d1d5f63c71e7b99f981f63ef7/0158406d1d5f63c71e7b99f981f63ef7.mp4
*/
private String getFilePathByMd5(String fileMd5, String fileExt) {
return fileMd5.substring(0, 1) + "/" + fileMd5.substring(1, 2) + "/" + fileMd5 + "/" + fileMd5 + fileExt;
}
/**
* 通过minio获取文件大小 //----------------------方法3
*
* @return
*/
private long getFileSizeFromMinIO(String bucket, String objectName) {
StatObjectResponse videoInfo = null;
try {
videoInfo = minioClient.statObject(StatObjectArgs.builder()
.bucket(bucket)
.object(objectName)
.build());
} catch (Exception e) {
e.printStackTrace();
}
return videoInfo.size();
}
/**
* 清理分块文件 //----------------------方法5
*/
private void clearChunkFiles(String chunkFileFolderPath, int chunkTotal) {
Iterable<DeleteObject> objects = Stream.iterate(0, i -> ++i).limit(chunkTotal).map(i -> new DeleteObject(chunkFileFolderPath + i)).collect(Collectors.toList());
RemoveObjectsArgs removeObjectsArgs = RemoveObjectsArgs.builder()
.bucket(bucket_video)
.objects(objects)
.build();
Iterable<Result<DeleteError>> results = minioClient.removeObjects(removeObjectsArgs);
//要想真正删除
results.forEach(item -> {
try {
item.get();
} catch (Exception e) {
e.printStackTrace();
}
});
}
/**
* 将文件信息添加到文件表 //----------------------方法4
* 抽取为为接口，通过代理对象调用，方法上有@Transaction注解，启用事务
*
* @param companyId 机构id
* @param fileMd5 文件md5值
* @param uploadFileParamsDto 上传文件的信息
* @param bucket 桶
* @param objectName 对象名称
* @return com.xuecheng.media.model.po.MediaFiles
*/
@Transactional
public MediaFiles addMediaFilesToDb(Long companyId, String fileMd5, UploadFileParamsDto uploadFileParamsDto, String bucket, String objectName) {
MediaFiles mediaFiles = mediaFilesMapper.selectById(fileMd5);
if (mediaFiles == null) {
mediaFiles = new MediaFiles();
BeanUtils.copyProperties(uploadFileParamsDto, mediaFiles);
//文件id
mediaFiles.setId(fileMd5);
//机构id
mediaFiles.setCompanyId(companyId);
//桶
mediaFiles.setBucket(bucket);
//file_path
mediaFiles.setFilePath(objectName);
//file_id
mediaFiles.setFileId(fileMd5);
//url
mediaFiles.setUrl("/" + bucket + "/" + objectName);
//上传时间
mediaFiles.setCreateDate(LocalDateTime.now());
//状态
mediaFiles.setStatus("1");
//审核状态
mediaFiles.setAuditStatus("002003");
//插入数据库
int insert = mediaFilesMapper.insert(mediaFiles);
if (insert <= 0) {
log.debug("向数据库保存文件失败,bucket{},objectName{}", bucket, objectName);
return null;
}
}
return mediaFiles;
}
10. 完善接口层-Controller
/**
* @Author: ciky
* @Description: 上传视频
* @DateTime: 2024/6/5 12:39
**/
@Api(value = "大文件上传接口", tags = "大文件上传接口")
@RestController
public class BigFileController {
@Autowired
private MediaFileService mediaFileService;
@ApiOperation("文件上传前检查文件")
@PostMapping("/upload/checkfile")
public RestResponse<Boolean> checkfile(
@RequestParam("fileMd5") String fileMd5
) throws Exception {
RestResponse<Boolean> booleanRestResponse = mediaFileService.checkFile(fileMd5);
return booleanRestResponse;
}
@ApiOperation("分块文件上传前的检测")
@PostMapping("/upload/checkchunk")
public RestResponse<Boolean> checkchunk(
@RequestParam("fileMd5") String fileMd5,
@RequestParam("chunk") int chunk
) throws Exception {
RestResponse<Boolean> booleanRestResponse = mediaFileService.checkChunk(fileMd5, chunk);
return booleanRestResponse;
}
@ApiOperation("上传分块文件")
@PostMapping("/upload/uploadchunk")
public RestResponse<Boolean> uploadchunk(
@RequestParam("file") MultipartFile file,
@RequestParam("fileMd5") String fileMd5,
@RequestParam("chunk") int chunk
) throws Exception {
//创建一个临时文件
File tempFile = File.createTempFile("minio", ".temp");
file.transferTo(tempFile);
//文件路径
String localFilePath = tempFile.getAbsolutePath();
RestResponse<Boolean> uploadChunk = mediaFileService.uploadChunk(fileMd5, chunk, localFilePath);
return uploadChunk;
}
@ApiOperation("合并文件")
@PostMapping("/upload/mergechunks")
public RestResponse<Boolean> mergechunks(
@RequestParam("fileMd5") String fileMd5,
@RequestParam("fileName") String fileName,
@RequestParam("chunkTotal") int chunkTotal
) throws Exception{
Long companyId = 12332141425L;
//文件信息对象
UploadFileParamsDto uploadFileParamsDto = new UploadFileParamsDto();
uploadFileParamsDto.setFilename(fileName);
uploadFileParamsDto.setTags("视频文件");
uploadFileParamsDto.setFileType("001002");
RestResponse<Boolean> booleanRestResponse = mediaFileService.mergeChunks(companyId, fileMd5, chunkTotal, uploadFileParamsDto);
return booleanRestResponse;
}
}
